Perforated Fence Panel Bundle includes:

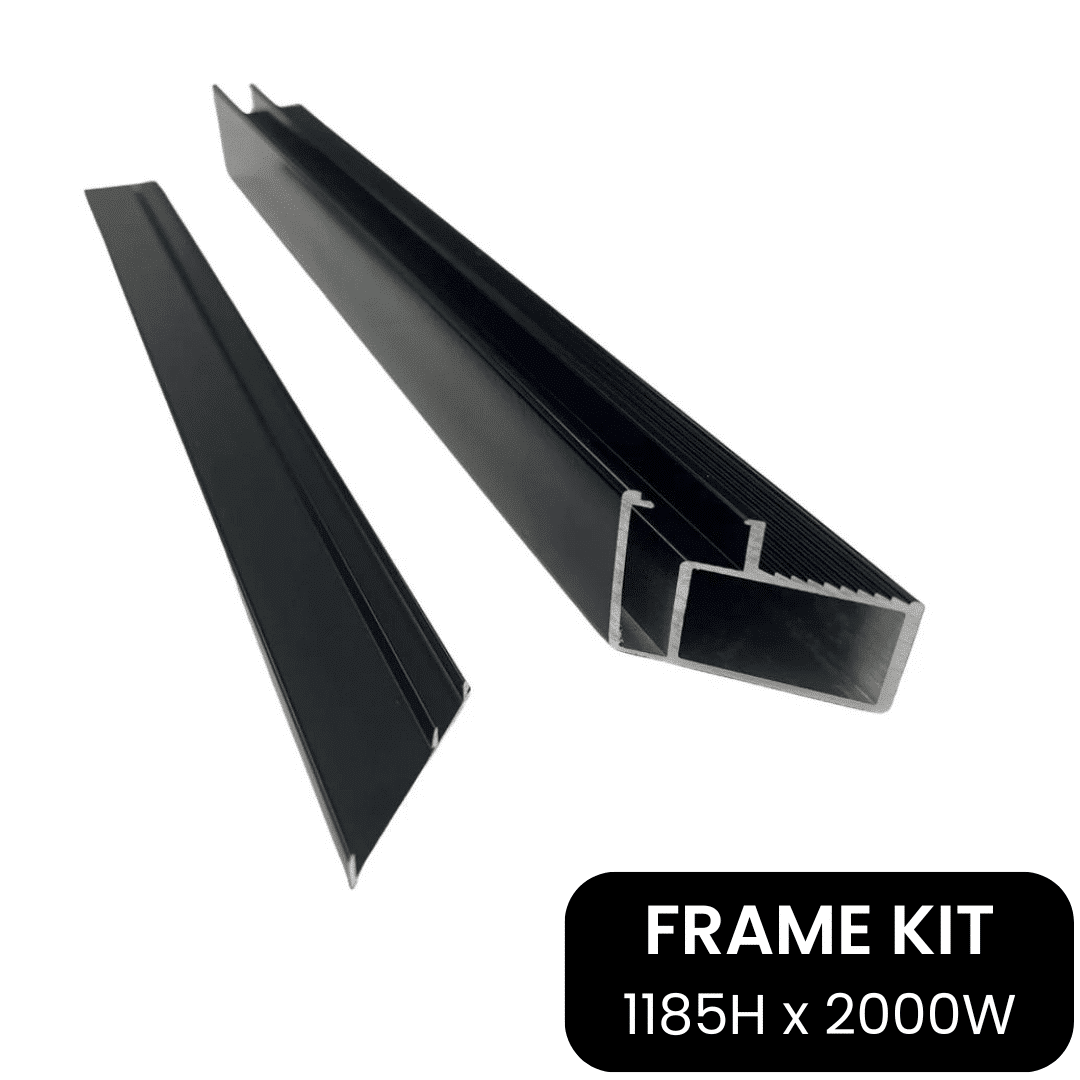

• Includes Premium Frame Kit – ALREADY CUT FOR YOU: (Attach to Panel)
• 2 x 1185mm side frames including clip on cover
• 2 x 2000mm top and bottom frame including clip on cover
• 4 x Corner Stake

General Details:

• Marine grade Aluminium

• For Mitre Cut installation, add 40mm the panel size = cut length
  eg cut list for

  • 1140×1960 perf panel

  • 2 × 1180, 2× 2000.

• Panels can be cut to any size

Installing Perforated Fencing

1. Cut horizontal and vertical frame material lengths from full length material. Add 40mm to the total width of the perforated infill panel width or height.
   For Example, cutting horizontal frame length for standard 1.2m wide fence panel: The perforated panel sheet is 1140 x 1960mm long. Add 40mm to total length and mitre cut
   You need 2 x horizontal length and 2 vertical length per panel.
   Tip: Cut cover clip and frame assembled at same time to ensure good fit
2. Cut  2x 1200mm long U – Channel lengths from full length material
3. Assemble frames with corner stakes
4. Fit Perforated Infill Panel into assembled frames
5. Fix Perforated Infill Panel in frame with screws provided
6. Cover Screws with cover clip material.

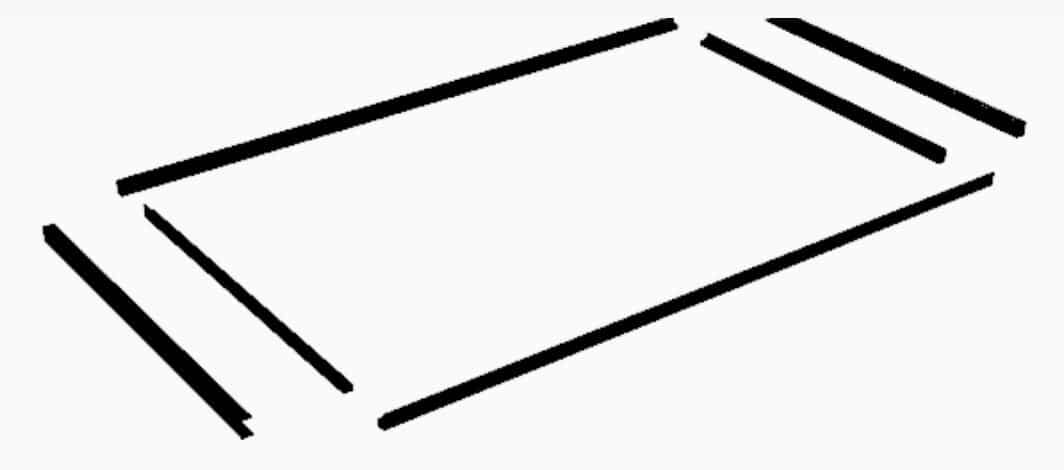

Assembling the frame

Fitting Corner Stakes if too tight

Fitting the Perforated Fence Sheet inside the Frame

Fixing the Perforated Sheet inside the frame with screws
